USBLC6-2SC6Y

TVS DIODE 5.25VWM 17VC SOT23-6

Features

■ 2 data lines protected

■ Protects VBUS

■ Very low capacitance: 2.5 pF

■ Very low leakage current: 10 nA

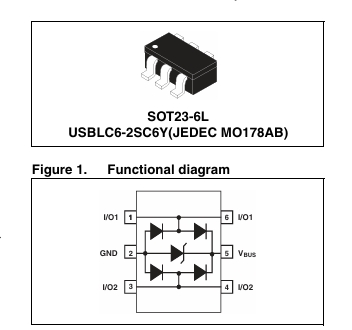

■ SOT23-6L package

■ RoHS compliant

■ AEC-Q101 qualified

Benefits

■ Very low capacitance between lines to GND for optimized data integrity and speed

■ Low PCB space consumption

■ Enhanced ESD protection. ISO10605 up to 25 kV guaranteed at device level

■ ESD protection of VBUS

■ High reliability offered by monolithic integration

■ Fast response time

■ Consistent D+ / D- signal balance:

– Very low capacitance matching tolerance I/O to GND = 0.015 pF

– Compliant with USB 2.0 requirements

Complies with the following standards

■ ISO10605: C = 150 pF, R = 330 W

– 25 kV (air discharge)

– 15 kV (contact discharge)

■ ISO10605: C = 330 pF, R = 330 W

– 15 kV (air discharge)

– 15 kV (contact discharge)

■ ISO7637-3

– Pulse 3a: Vs = -150 V

– Pulse 3b: Vs = +100 V

Applications

■ USB 2.0 ports up to 480 Mb/s (high speed)

■ Compatible with USB 1.1 low and full speed

■ High-speed datalines in smart junction boxes

■ Ethernet port: 10/100 Mb/s

■ Video line protection

Description

The USBLC6-2SC6Y is a monolithic device dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines.

The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringent characterized ESD strikes.
