STM32G070RBT6

IC MCU 32BIT 128KB FLASH 64LQFP

Features ·

·Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz ·

·-40°C to 85°C operating temperature ·

·Memories

– 128 Kbytes of Flash memory with protection

– 36 Kbytes of SRAM (32 Kbytes with HW parity check) ·

·CRC calculation unit ·

·Reset and power management

– Voltage range: 2.0 V to 3.6 V

– Power-on/Power-down reset (POR/PDR)

– Low-power modes:  Sleep, Stop, Standby

– VBAT supply for RTC and backup registers ·

·Clock management

– 4 to 48 MHz crystal oscillator

– 32 kHz crystal oscillator with calibration

– Internal 16 MHz RC with PLL option

– Internal 32 kHz RC oscillator (±5 %) ·

·Up to 59 fast I/Os

– All mappable on external interrupt vectors

– Multiple 5 V-tolerant I/Os ·

·7-channel DMA controller with flexible mapping ·

·12-bit, 0.4 µs ADC (up to 16 ext. channels)

– Up to 16-bit with hardware oversampling

– Conversion range: 0 to 3.6V ·

·11 timers: 16-bit for advanced motor control, five 16-bit general-purpose, two basic 16-bit, two watchdogs, SysTick timer ·

·Calendar RTC with alarm and periodic wakeup from Stop/Standby

· Communication interfaces

– Two I2C-bus interfaces supporting Fast mode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode

– Four USARTs with master/slave synchronous SPI; two supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature

– Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframe, one multiplexed with I2S interface ·

·Development support: serial wire debug (SWD) ·

·All packages ECOPACK 2 compliant

Description

The STM32G070CB/KB/RB mainstream microcontrollers are based on high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the Internet of Things (IoT) solutions.

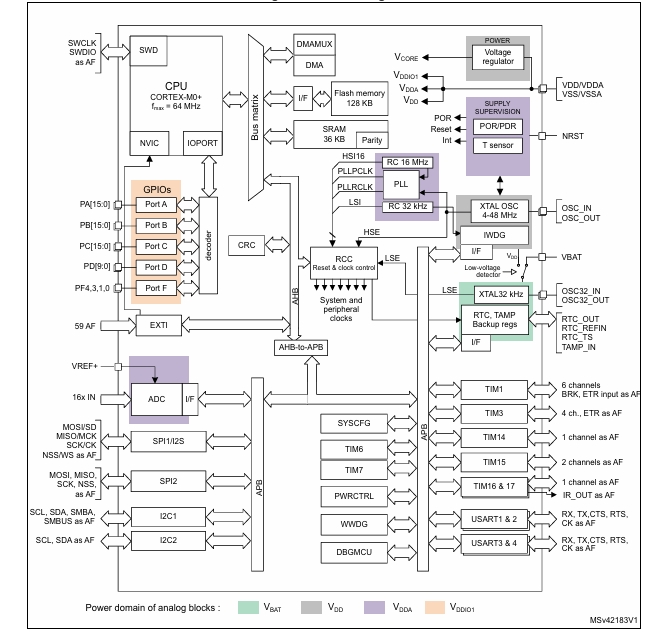

The devices incorporate a memory protection unit (MPU), high-speed embedded memories (128 Kbytes of Flash program memory with read protection, write protection, and 36 Kbytes of SRAM), DMA and an extensive range of system functions, enhanced I/Os and peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one I2S, and four USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power RTC, an advanced control PWM timer, five general-purpose 16-bit timers, two basic timers, two watchdog timers, and a SysTick timer.

The devices operate within ambient temperatures from -40 to 85°C. They can operate with supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of power-saving modes allows the design of low-power applications.

VBAT direct battery input allows keeping RTC and backup registers powered.

The devices come in packages with 32 to 64 pins.
