XCF04SVOG20C

IC PROM SRL FOR 4M GATE 20-TSSOP

Features

• In-System Programmable PROMs for Configuration of Xilinx® FPGAs

• Low-Power Advanced CMOS NOR Flash Process

• Endurance of 20,000 Program/Erase Cycles

• Operation over Full Industrial Temperature Range (–40°C to +85°C)

• IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing

• JTAG Command Initiation of Standard FPGA Configuration

• Cascadable for Storing Longer or Multiple Bitstreams

• Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ)

• I/O Pins Compatible with Voltage Levels Ranging From 1.8V to 3.3V

• Design Support Using the Xilinx ISE® Alliance and Foundation™ Software Packages

• XCF01S/XCF02S/XCF04S

• 3.3V Supply Voltage

• Serial FPGA Configuration Interface

• Available in Small-Footprint VO20 and VOG20 Packages

• XCF08P/XCF16P/XCF32P

• 1.8V Supply Voltage

• Serial or Parallel FPGA Configuration Interface

• Available in Small-Footprint VOG48, FS48, and FSG48 Packages

• Design Revision Technology Enables Storing and Accessing Multiple Design Revisions for Configuration

• Built-In Data Decompressor Compatible with Xilinx Advanced Compression Technology

Description

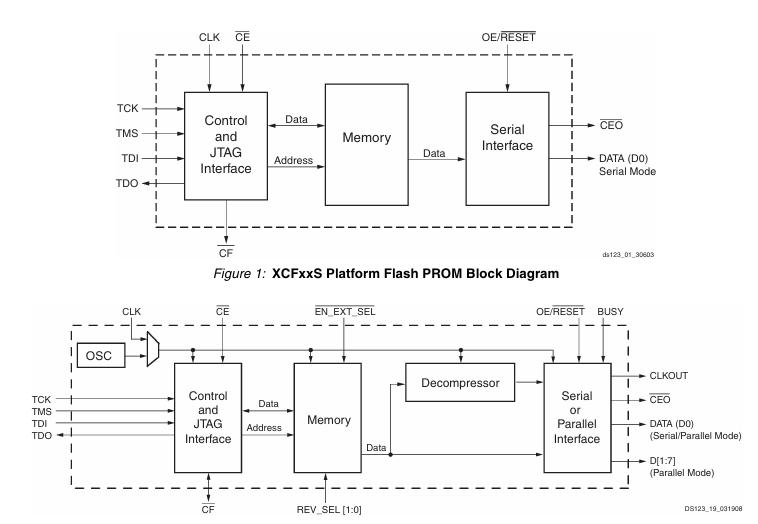

Xilinx introduces the Platform Flash series of in-system programmable configuration PROMs. Available in 1 to 32 Mb densities, these PROMs provide an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The Platform Flash PROM series includes both the 3.3V XCFxxS PROM and the 1.8V XCFxxP PROM. The XCFxxS version includes 4 Mb, 2 Mb, and 1 Mb PROMs that support Master Serial and Slave Serial FPGA configuration modes (Figure 1, page 2). The XCFxxP version includes 32 Mb, 16 Mb, and8 Mb PROMs that support Master Serial, Slave Serial, Master SelectMAP, and Slave SelectMAP FPGA configuration modes (Figure 2, page 2).

When driven from a stable, external clock, the PROMs can output data at rates up to 33 MHz. Refer to "AC Electrical Characteristics," page 16 for timing considerations.

A summary of the Platform Flash PROM family members and supported features is shown in Table 1.
