LMD18200T

IC MTR DRV BIPLR 12-55V TO220-11

FEATURES

• Delivers Up to 3A Continuous Output

• Operates at Supply Voltages Up to 55V

• LowRDS(ON) Typically 0.33Ω per Switch at 3A

• TTLandCMOSCompatible Inputs

• No“Shoot-Through” Current

• Thermal Warning Flag Output at 145°C

• Thermal Shutdown (Outputs Off) at 170°C

• Internal Clamp Diodes

• Shorted Load Protection

• Internal Charge Pump with External Bootstrap Capability

APPLICATIONS

• DCandStepper Motor Drives

• Position and Velocity Servomechanisms

• Factory Automation Robots

• Numerically Controlled Machinery

• Computer Printers and Plotters

DESCRIPTION

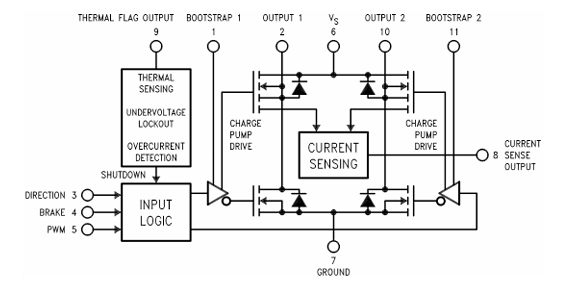

The LMD18200 is a 3A H-Bridge designed for motion control applications. The device is built using a multi technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure. Ideal for driving DC and stepper motors; the LMD18200 accommodates peak output currents up to 6A. An innovative circuit which facilitates low-loss sensing of the output current has been implemented.
