CP2102-GMR

IC USB-TO-UART BRIDGE 28VQFN

Single-Chip USB to UART Data Transfer

- Integrated USB transceiver; no external resistors required

- Integrated clock; no external crystal required

- EEPROM (CP2102)

-EPROM (One-time programmable) (CP2109)

- On-chip power-on reset circuit

- On-chip voltage regulator

- 3.3 V output (CP2102)

- 3.45 V output (CP2109)

- 100% pin and software compatible with CP2101

USB Function Controller

-USB Specification 2.0 compliant; full-speed (12 Mbps)

- USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)

- All handshaking and modem interface signals

- Data formats supported:

- Data bits: 5, 6, 7, and 8

- Stop bits: 1, 1.5, and 2

- Parity: odd, even, mark, space, no parity

- Baud rates: 300 bps to 1 Mbps

- 576 Byte receive buffer; 640 byte transmit buffer

- Hardware or X-On/X-Off handshaking supported

- Event character support

- Line break transmission 7 6 R

Virtual COM Port Device Drivers

- Works with existing COM port PC Applications

- Royalty-free distribution license

- Windows 8/7/Vista/Server 2003/XP/2000

- Mac OS-X/OS-9

- Linux

USBXpress™ Direct Driver Support

- Royalty-Free Distribution License

- Windows 7/Vista/XP/Server 2003/2000

- Windows CE

Example Applications

- Upgrade of RS-232 legacy devices to USB

- Cellular phone USB interface cable

- USB interface cable- USB to RS-232 serial adapter

Supply Voltage

- Self-powered: 3.0 to 3.6 V

- USB bus powered: 4.0 to 5.25 V

Package

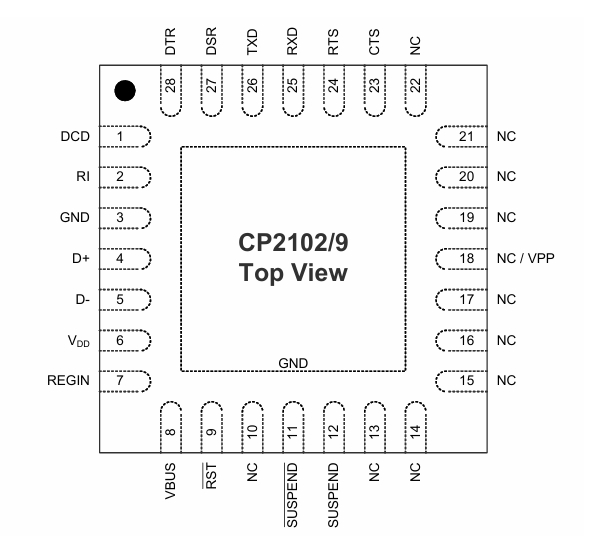

- RoHS-compliant 28-pin QFN (5x5 mm)

Ordering Part Numbers

- CP2102-GM

- CP2109-A01-GM

Temperature Range: –40 to +85 °C

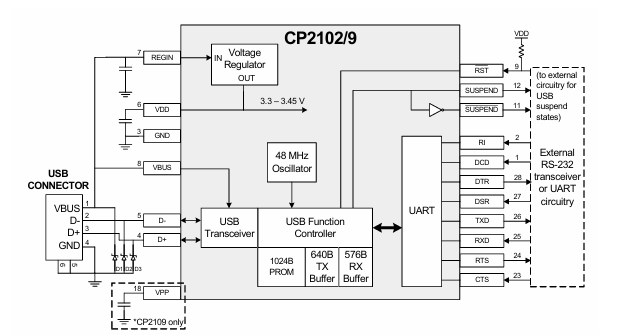

1. System Overview

The CP2102/9 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS 232 designs to USB using a minimum of components and PCB space. The CP2102/9 includes a USB 2.0 full speed function controller, USB transceiver, oscillator, EEPROM or EPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package. No other external USB components are required.

The on-chip programmable ROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The programmable ROM is programmed on-board via the USB, allowing the programming step to be easily integrated into the product manufacturing and testing process.

Royalty-free Virtual COM Port (VCP) device drivers provided by Silicon Laboratories allow a CP2102/9-based product to appear as a COM port to PC applications. The CP2102/9 UART interface implements all RS-232 signals, including control and handshaking signals, so existing system firmware does not need to be modified. In many existing RS-232 designs, all that is required to update the design from RS-232 to USB is to replace the RS 232 level-translator with the CP2102/9. Direct access driver support is available through the Silicon Laboratories USBXpress driver set.

An evaluation kit for the CP2102 (Part Number: CP2102EK) is available. The kit includes a CP2102-based USB-to UART/RS-232 evaluation board, a complete set of VCP device drivers, USB and RS-232 cables, and full documentation. Contact a Silicon Labs sales representative
