CD74HCT00M96

IC GATE NAND 4CH 2-INP 14SOIC

1 Features

• Buffered inputs

• Wide operating voltage range: 2 V to 6 V

• Wide operating temperature range:–55°C to +125°C

• Supports fanout up to 10 LSTTL loads

• Significant power reduction compared to LSTTL logic ICs

2 Applications

• Alarm / tamper detect circuit

• S-R latch

3 Description

This device contains four independent 2-input NAND gates. Each gate performs the Boolean function Y = A ● B in positive logic.

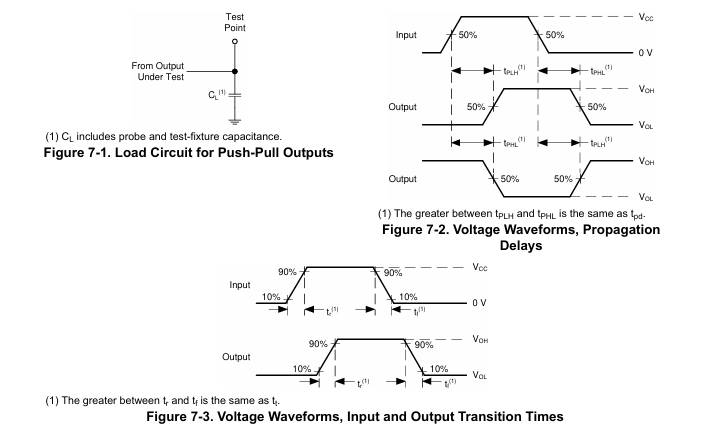

Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 6 ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.
