SN74AHC32NSR

4 通道、2 输入、2V 至 5.5V 或门

FEATURES

• Operating Range 2-V to 5.5-V VCC

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESDProtection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V Charged-Device Model (C101)

DESCRIPTION

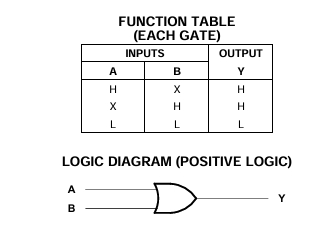

The ’AHC32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function Y = A • Bor Y =A+Binpositive logic.
