TPA3126D2EVM

EVAL MODULE FOR TPA3126

Thisuser’sguidedescribestheoperationof theTPA3126D2EVM.Theuser’sguidealsoprovidesdesign informationsuchasPCBlayout,billofmaterials(BOM),andschematic

1   Hardware Overview

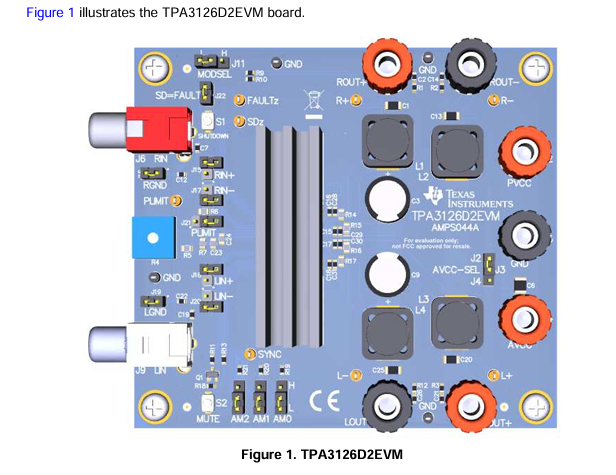

The TPA3126D2EVM customer evaluation module demonstrates the integrated circuits TPA3126D2 from Texas Instruments (TI). The TPA3126D2 is a 50-W (per channel) efficient stereo digital amplifier power stage for driving two bridge-tied speakers or a single parallel bridge-tied load. This document covers EVM specifications and design documentation.

2 Board Layouts, Bill of Materials, and Schematic

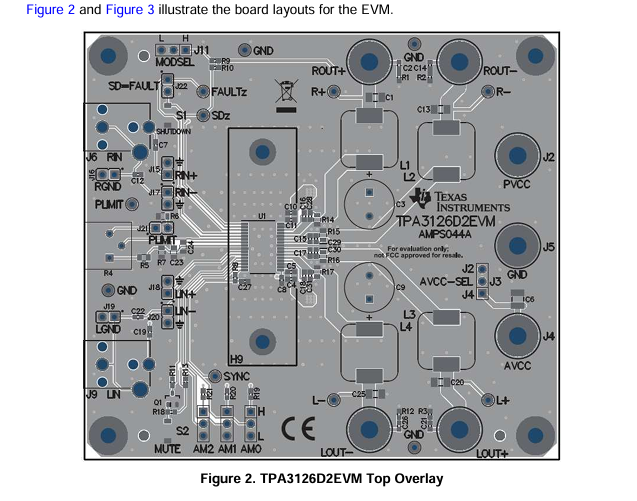

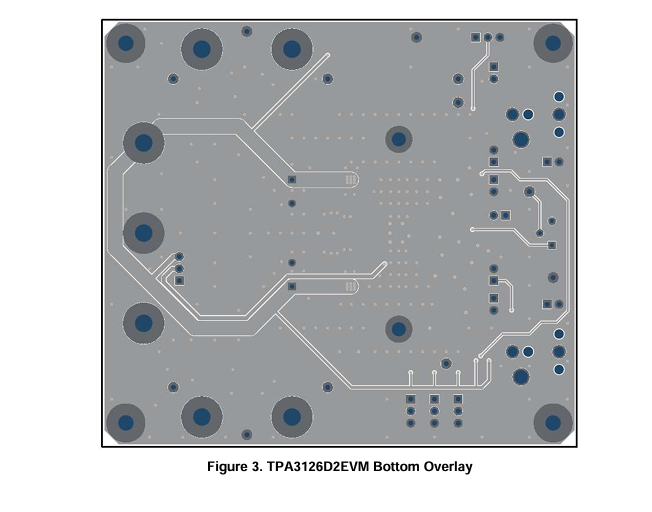

2.1 TPA3126D2EVM Board Layouts

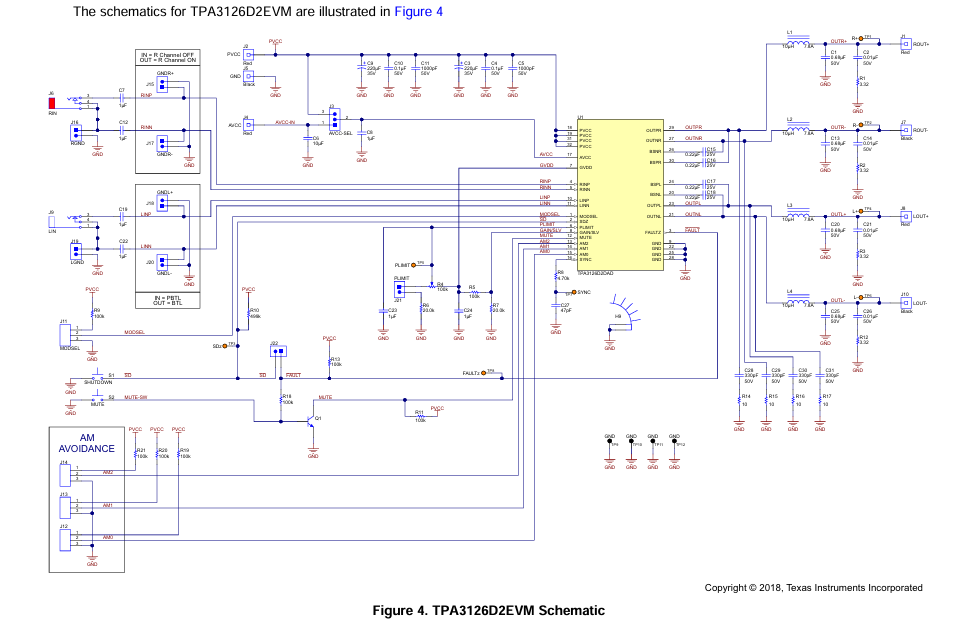

3. TPA3126D2EVMSchematic
