LM4961LQBD

BOARD EVALUATION LM4961LQ

FEATURES

• Click and Pop Circuitry Eliminates Noise During Turn-On and Turn-Off Transitions

• LowCurrent Shutdown Mode

• LowQuiescent Current

• Mono15Vp-p BTL Output, RL = 2μF+30Ω, f =

1kHz

• Thermal Shutdown Protection

• Unity-Gain Stable

• External Gain Configuration Capability

• Including Band Exchange SW

• Including Leakage Cut SW

APPLICATIONS

• Cellphone

• PDA

KEY SPECIFICATIONS

• Quiescent Power Supply Current: 7mA (typ)

• Voltage Swing in BTL at 1% THD: 15Vp-p (typ)

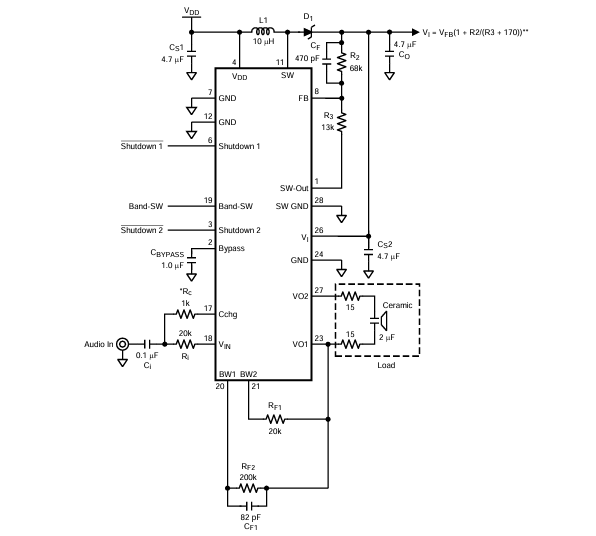

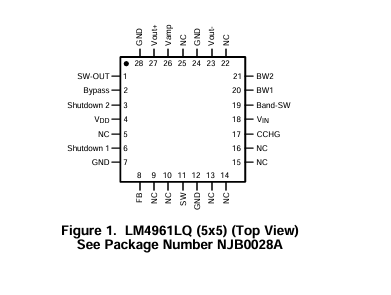

• Shutdown current: 0.1μA (typ) Connection Diagram

DESCRIPTION

The LM4961 is an audio power amplifier primarily designed for driving Ceramic Speaker for applications in Cell Phone and PDAs. It integrates a boost converter, with variable output voltage, with an audio power amplifier. It is capable of driving 15Vp-p in BTL mode to 2uF+ 30 ohms load, continuous average power, with less than 1% distortion (THD+N) from a 3.2VDC power supply.

Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal number of external components. The LM4961 does not require bootstrap capacitors, or snubber circuits therefore it is ideally suited for portable applications requiring high voltage output to drive capacitive loads like Ceramic Speakers. The LM4961 features a low-power consumption shutdown mode. Additionally, the LM4961 features an internal thermal shutdown protection mechanism.

The LM4961 contains advanced pop & click circuitry that eliminates noises which would otherwise occur during turn-on and turn-off transitions.

The LM4961 is unity-gain stable and can be configured by external gain-setting resistors.
