ADC121C021EVM

ADC121C021 评估模块

The ADC121C021EVM User's Guide provides instructions for connecting the ADC121C021EVM BoosterPack into the MSP430 LaunchPad. ADC121C021EVM GUI, Firmware, and USB Driver are available upon request.

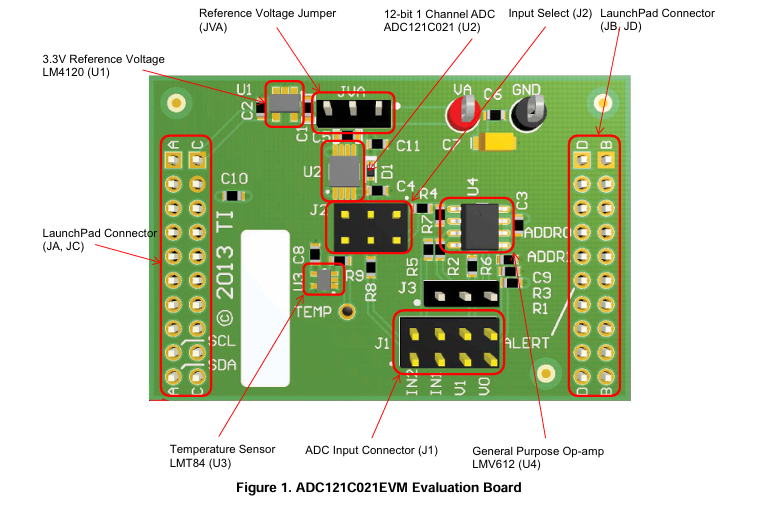

1    ADC121C021EVM BoosterPack Components

2     Software Installation

2.1 Graphical User Interface (GUI)

    ADC121C021EVM GUI available upon request.

2.2 Launchpad Firmware Upgrade

ADC121C021EVM Firmware available upon request.

2.3 Update USB Driver

ADC121C021EVM USB Driver available upon request.

3     ADC121C021 BoosterPack Setup and Operation

3.1 Connections

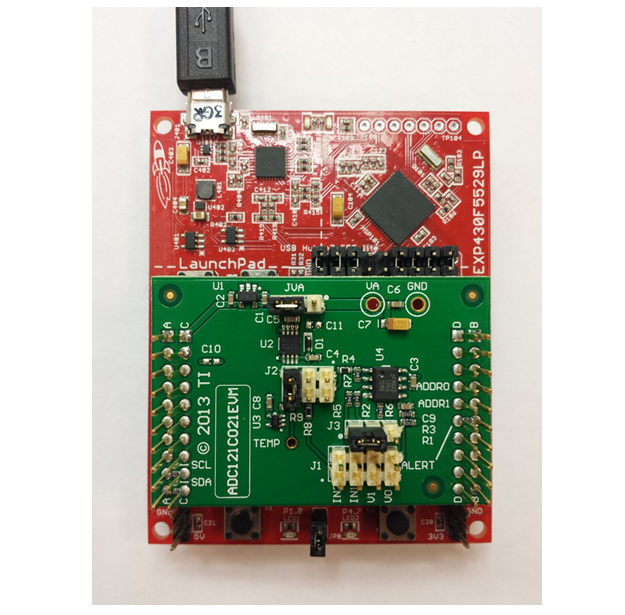

1. Attach the ADC121C021EVM BoosterPack onto the MSP430 LaunchPad using connectors JA, JB, JC, JD. The proper orientation of the Launchpad and ADC121C021EVM is when the text “LaunchPad” and “2013 TI” are perpendicular.

2. 2. Connect the USB cable from the LaunchPad to the PC.

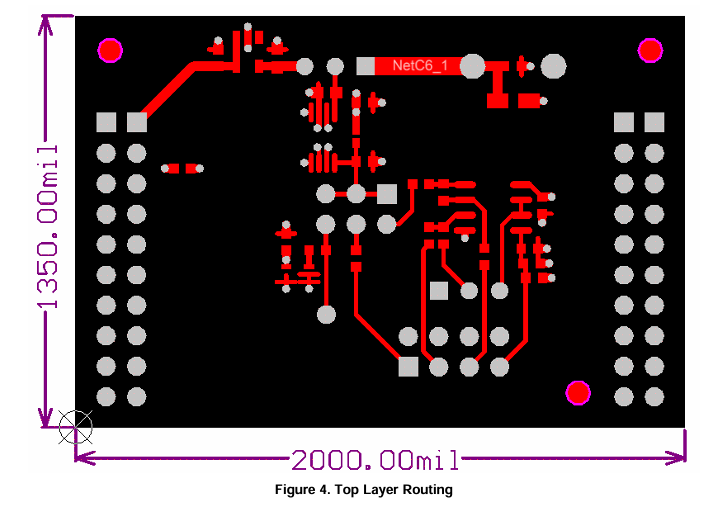

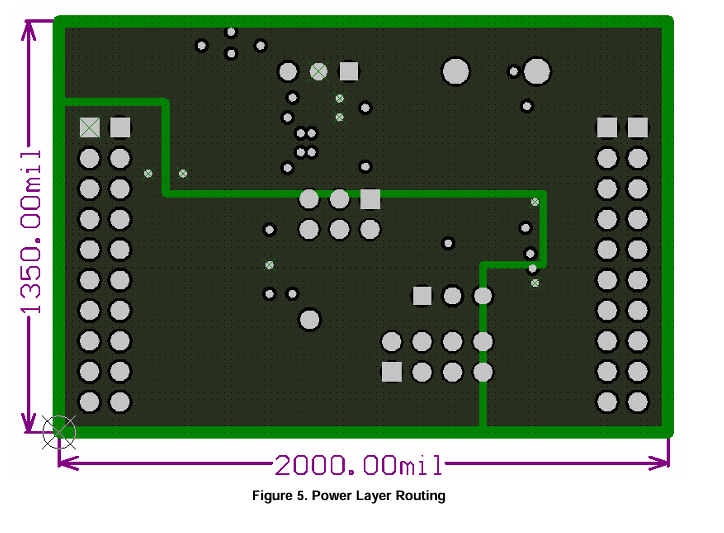

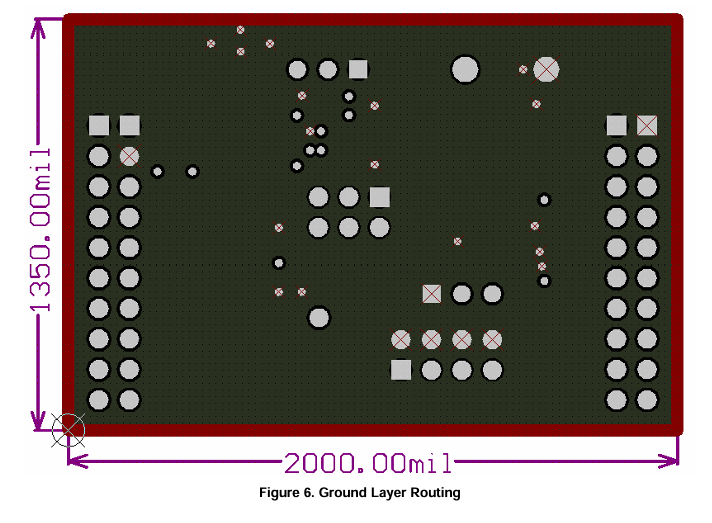

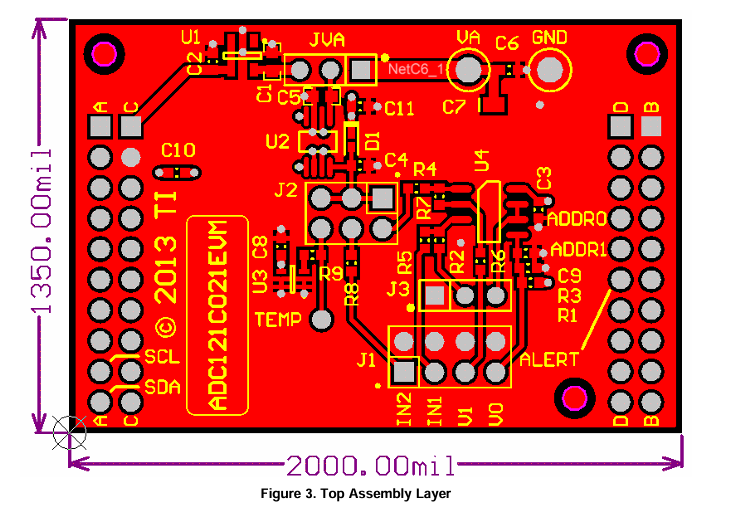

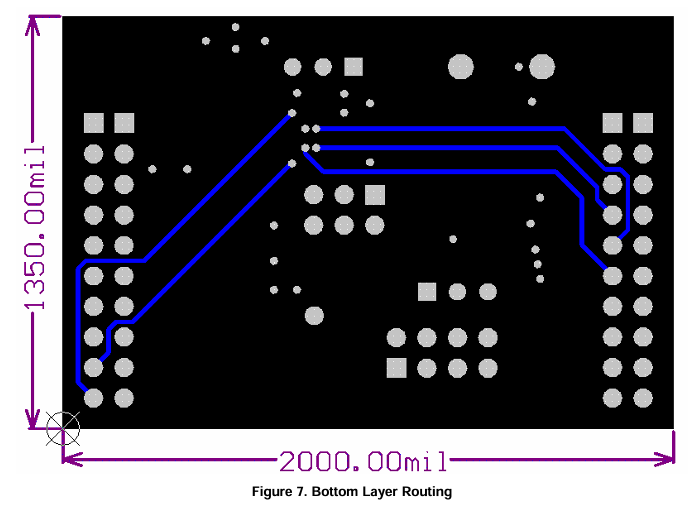

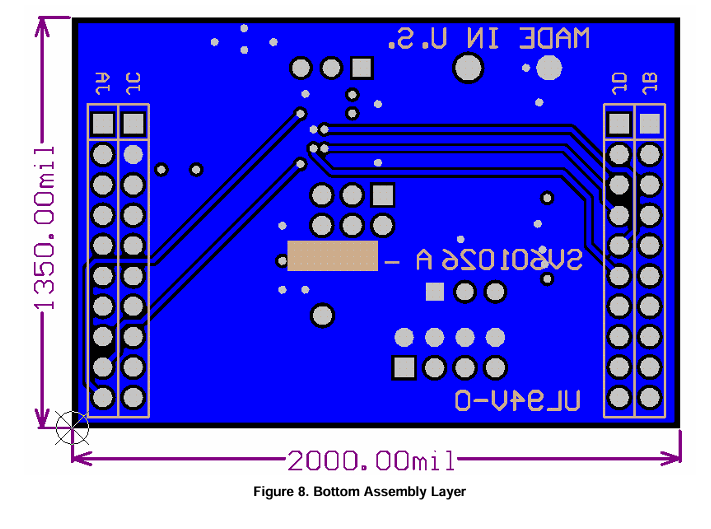

4     Board Layout

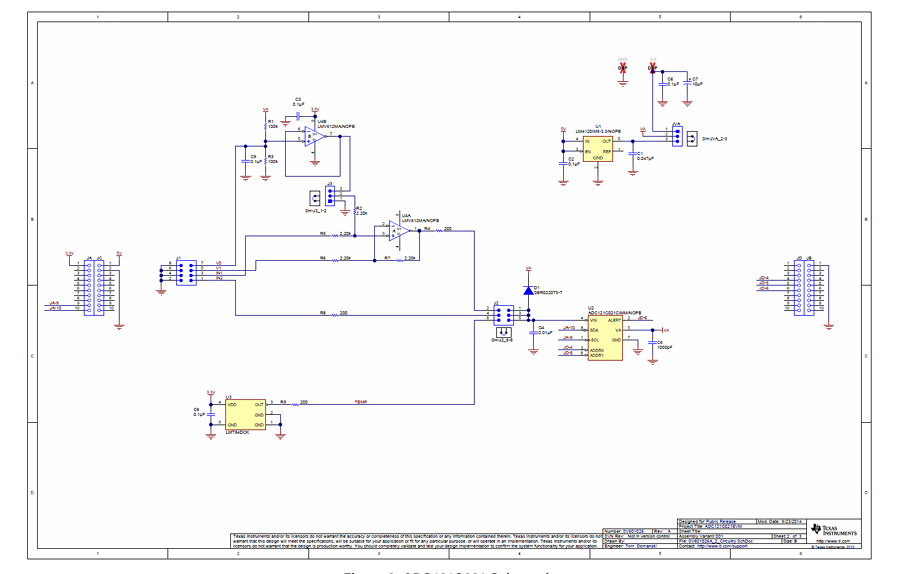

5 Schematic
