SN74LVC139ADGVR

IC DECODER/DEMUX 1X2:4 16TVSOP

FEATURES

• Operates From 1.65 V to 3.6 V

• Inputs Accept Voltages to 5.5 V

• Maxtpdof 6.2 ns

• Typical VOLP (Output Ground Bounce) 2 V at VCC = 3.3 V, TA = 25°C

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESDProtection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V Charged-Device Model (C101)

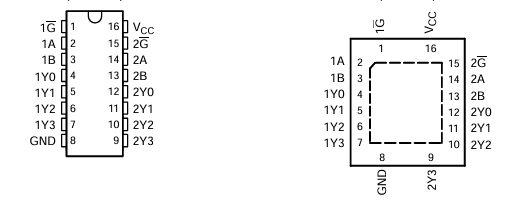

DESCRIPTION/ORDERING INFORMATION

This dual 2-line to 4-line decoder/demultiplexer is designed for 1.65-V to 3.6-V VCC operation.

The device comprises two individual 2-line to 4-line decoders in a single package. The active-low enable (G) input can be used as a data line in demultiplexing applications. This decoder/demultiplexer features fully buffered inputs, each of which represents only one normalized load to its driving circuit.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.
