TMP709AQDBVRQ1

THERMOSTAT PROG ACT LOW SOT23-5

1 Features

• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

– Device Temperature Grade 1:–40°C to 125°C Ambient Operating Temperature Range

– Device HBM ESD Classification Level 3A

– Device CDM ESD Classification Level C6

• Threshold Accuracy:

– ±0.5°C Typical

– ±3.5°C Maximum (60°C to 100°C)

• Temperature Threshold Set By 1% External Resistor

• LowQuiescent Current: 40 μA Typical

• Open-Drain, Active-Low Output Stage

• Pin-Selectable 2°C or 10°C Hysteresis

• Reset Operation Specified at VCC = 0.8 V

• Supply Range: 2.7 V to 5.5 V

• Package: 5-Pin SOT-23

2 Applications

• Computers (Laptops and Desktops)

• Servers

• Industrial and Medical Equipment

• Storage Area Networks

• Automotive

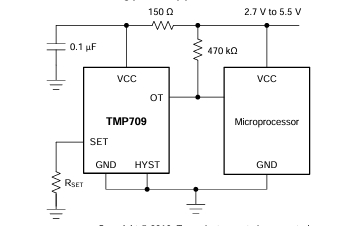

3 Description

The TMP709-Q1 is a fully-integrated, resistor programmable temperature switch with a temperature threshold that is set by just one external resistor within the entire operating range. The TMP709-Q1 provides an open-drain, active-low output and has a 2.7-V to 5.5-V supply-voltage range.

The temperature threshold accuracy is typically ±0.5°C, with a maximum of ±3.5°C (60°C to 100°C). The quiescent current consumption is typically 40 μA. Hysteresis is pin-selectable to 2°C or 10°C.

The TMP709-Q1 is available in a 5-pin, SOT-23 package.
