SN74AHCT1G86DCKR

IC GATE XOR 1CH 2-INP SC70-5

1 Features

• Operating range of 4.5V to 5.5V

• Max tpd of 8ns at 5V

• Low power consumption, 10A maximum ICC

• 8mA output drive at 5V

• Inputs are TTL-voltage compatible

• Latch-up performance exceeds 250mA per JESD 17

2 Applications

• Industrial PCs

• Stepper Motors

• AC Inverter Drives

• Notebook PCs

• Smart Meters: Data Concentrators

• Enterprise Servers

3 Description

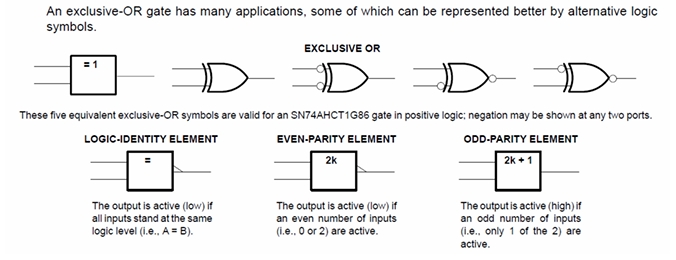

The SN74AHCT1G86 is a single 2-input exclusive-OR gate. The device performs the Boolean function Y = A ⊕ B or Y = AB + A B in positive logic.
