EPM1270T144C5N

IC CPLD 980MC 6.2NS 144TQFP

Software

MAX® II devices are supported by the Altera® Quartus® II design software with new, optional MAX+PLUS® II look and feel, which provides HDL and schematic design entry, compilation and logic synthesis, full simulation and advanced timing analysis, and device programming. Refer to the Design Software Selector Guide for more details about the Quartus II software features.

The Quartus II software supports the Windows XP/2000/NT, Sun Solaris, Linux Red Hat v8.0, and HP-UX operating systems. It also supports seamless integration with industry-leading EDA tools through the NativeLink interface.

Device Pin-Outs

Printed device pin-outs for MAXII devices are available on the Altera website

Ordering Information

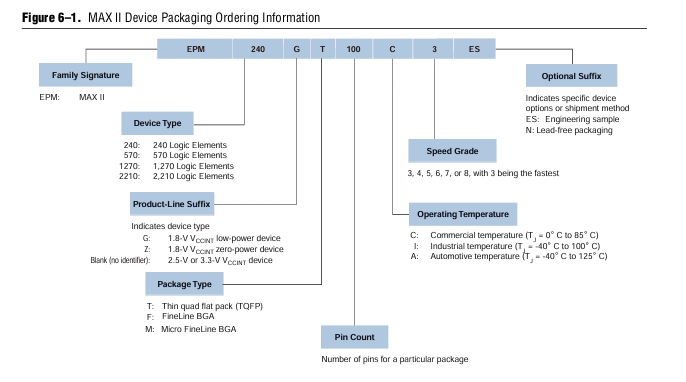

Figure6–1 describes the ordering codes for MAXII devices. For more information about a specific package, refer to the Package Information chapter in the MAXII Device Handbook

Referenced Documents

This chapter references the following document:

■ Package Information chapter in the MAX II Device Handbook
