AT24C02C-SSHM-T

IC EEPROM 2KBIT I2C 1MHZ 8SOIC

Features

• Low-Voltage Operation:

– VCC = 1.7V to 5.5V

• Internally Organized as 128 x 8 (1K) or 256 x 8 (2K)

• Industrial Temperature Range: -40°C to +85°C

• I2C-Compatible (Two-Wire) Serial Interface:

– 100 kHz Standard mode, 1.7V to 5.5V

– 400 kHz Fast mode, 1.7V to 5.5V

– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

• Schmitt Triggers, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• Write-Protect Pin for Full Array Hardware Data Protection

• Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)

• 8-Byte Page Write Mode:

– Partial page writes allowed

• Random and Sequential Read Modes

• Self-Timed Write Cycle within 5 ms Maximum

• ESD Protection > 4,000V

• High Reliability:

– Endurance: 1,000,000 write cycles

– Data retention: 100 years

• Green Package Options (Lead-free/Halide-free/RoHS compliant)

• Die Sale Options: Wafer Form and Bumped Wafers

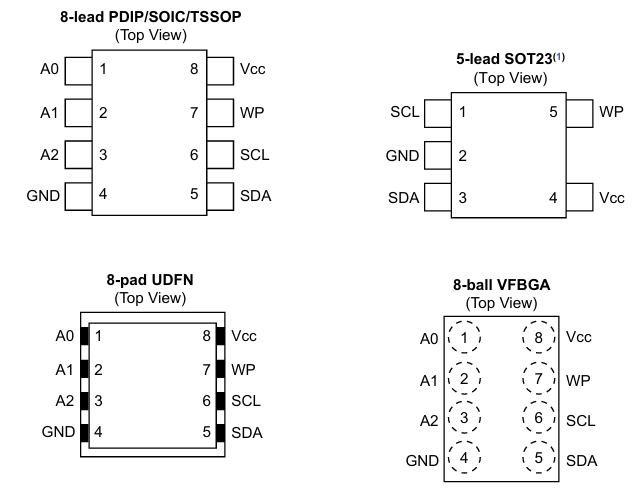

Packages

• 8-Lead PDIP, 8-Lead SOIC, 5-Lead SOT23, 8-Lead TSSOP, 8-Pad UDFN and 8-Ball VFBGA

Description

The AT24C01C/AT24C02C provides 1,024/2,048 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 128/256 words of 8 bits each. The device’s cascading feature allows up to eight devices to share a common twowire bus. This device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The device is available in space-saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23 and 8-ball VFBGA packages. All packages operate from 1.7V to 5.5V.
