LM2904DR

IC OPAMP GP 2 CIRCUIT 8SOIC

1 Features

Wide supply range of 3V to 36V (B, BA versionsQuiescent current: 300uA/ch(B, BA versions)Unity-gain bandwidth of 1.2MHz (B, BA versions)Common-mode input voltage range includesground, enabling direct sensing near ground2mV input offset voltage maximum at 25°C(BAversion)

3mV input offset voltage maximum at 25°C (A, Bversions)

Internal RF and EMl filter (B, BA versions)On products compliant to MIL-PRF-38535, alparameters are tested unless otherwise noted.Onall other products, production processing does notnecessarily include testing of all parameters.

2 Applications

Merchant network and server power supply unitsMulti-function printers

Power supplies and mobile chargersMotor control: AC induction, brushed DCbrushless DC, high-voltage, low-voltage,permanent magnet, and stepper motorDesktop PC and motherboard

Indoor and outdoor air conditionersWashers, dryers, and refrigerators

AC inverters, string inverters, central inverters, andvoltage frequency drivesUninterruptible power supplies

Electronic point-of-sale systems

3 Description

The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps. These devices provide outstanding value for cost-sensitive applications, with features including low offset (300µV, typical), common-mode input range to ground, and high differential input voltage capability.

The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage maximum of 3mV (2mV maximum for LM358BA and LM2904BA), and lower quiescent current of 300µA per amplifier (typical). High ESD (2kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging applications

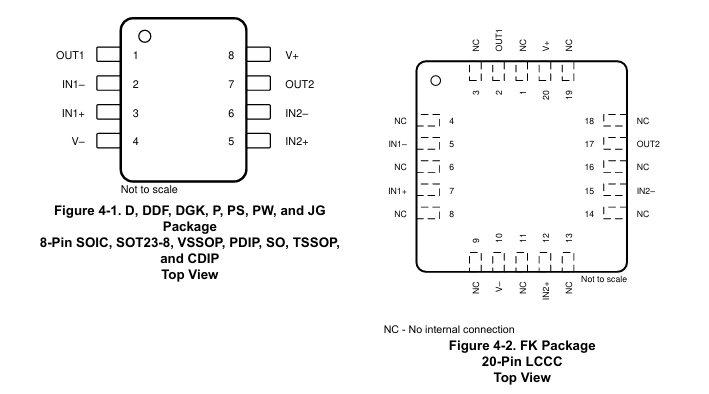

The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages including SOIC, TSSOP, and VSSOP.
