ADM2587EBRWZ

DGT ISO 2.5KV RS422/RS485 20SOIC

FEATURES

lsolated RS-485/RS-422 transceiver, configurable as half orfull duplexisoPower integrated isolated dc-to-dc converter±15 kV ESD protection on Rs-485 input/output pinsComplies with ANSI/TIA/EIA-485-A-98 and is0 8482:1987(E)ADM2582E data rate: 16 MbpsADM2587E data rate: 500 kbps5 V or 3.3 V operationConnect up to 256 nodes on one busOpen- and short-circuit, fail-safe receiver inputsHigh common-mode transient immunity: >25 kV/μsThermal shutdown protectionSafety and regulatory approvalsUL recognition:2500Vrms for 1 minute per UL 1577VDE Certificates of ConformityDIN EN 60747-5-2(VDE0884 Part 2):2003-01Vom = 560V peakOperating temperature range: -40°C to +85°CHighlyintegrated, 20-lead, wide-body sOlC package

APPLICATIONS

Isolated RS-485/RS-422 interfaces

Industrial field networks

Multipoint data transmission systems

GENERAL DESCRIPTION

The ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2582E/ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.

They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).

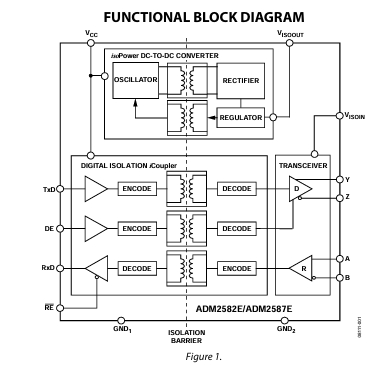

The devices integrate Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and Analog Devices isoPower® dc-to dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.

The ADM2582E/ADM2587E driver has an active high enable. An active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled.

The devices have current limiting and thermal shutdown features to protect against output short circuits and situations where bus contention may cause excessive power dissipation. The parts are fully specified over the industrial temperature range and are available in a highly integrated, 20-lead, wide-body SOIC package.

The ADM2582E/ADM2587E contain isoPower technology that uses high frequency switching elements to transfer power through the transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 Application Note, Control of Radiated Emissions with isoPower Devices, for details on board layout considerations.
