SN74HCS21PWR

IC GATE AND 2CH 4-INP 14TSSOP

1 Features

Wide operating voltage range: 2 V to 6 V

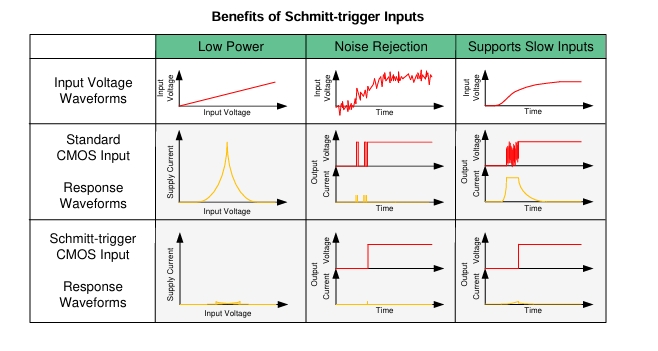

Schmitt-trigger inputs allow for slow or noisy inpsignals

Low power consumption

- Typical lcc of 100 nA

-Typical input leakage current of +100 nA

±7.8-mA output drive at 5 V

Extended ambient temperature range: -40'C to+125°C, TA

2 Applications

Combining power good signals

Enable digital signals

3 Description

This device contains two independent 4-input AND gates with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A ● B ● C ● D in positive logic.
