E52-P6DY 4M

A Wide Variety of High-precision Temperature Sensors

•Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.

•Ideal for the thermal input devices of Temperature Controllers.

•Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.

Ordering Information

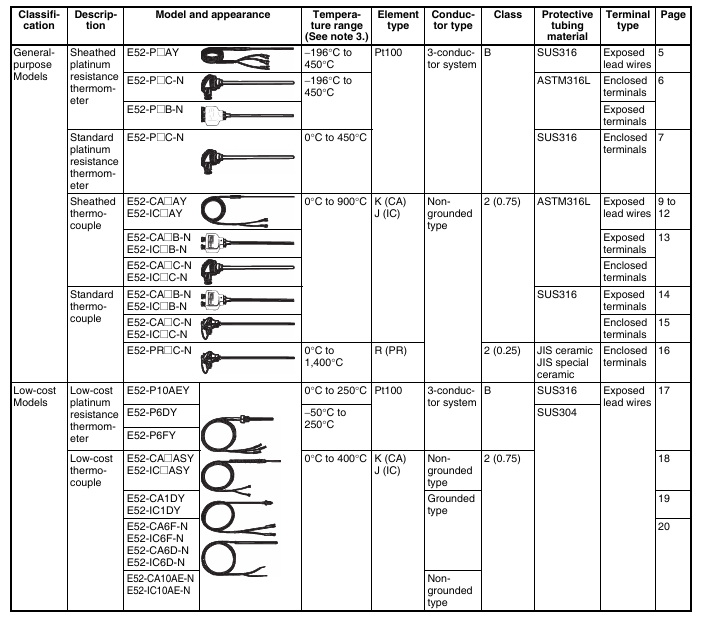

■List of Models (Temperature Sensors)

Note:

1. Exclusive models are provided on the following page.

2. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.

3. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

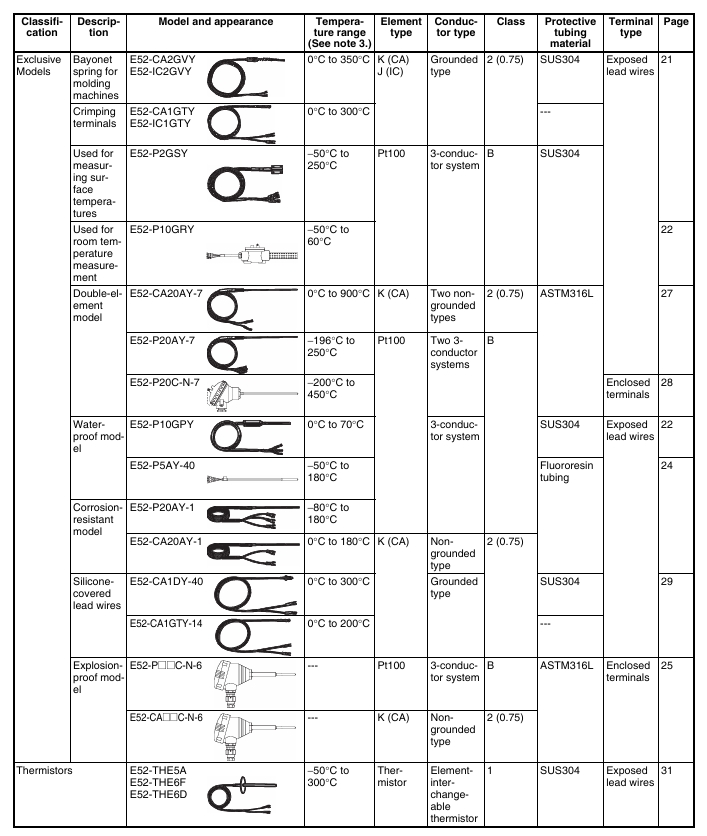

Note:

1. General-purpose models and low-cost models are provided on the previous page.

2. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.

3. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

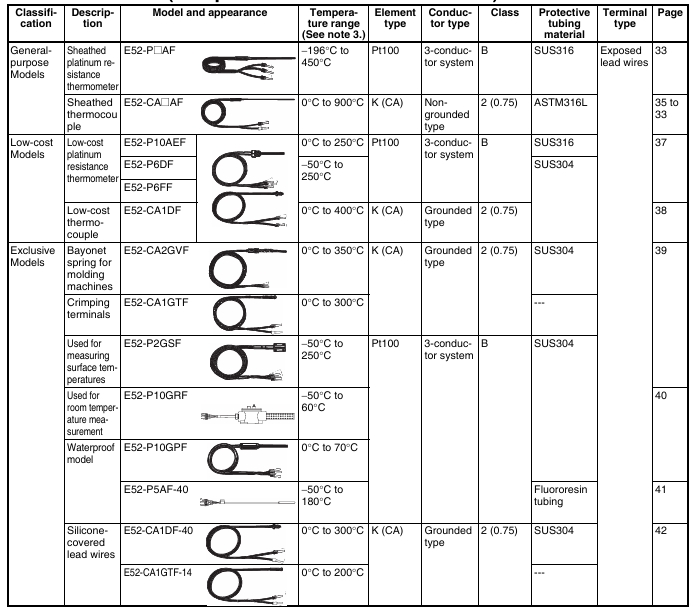

■List of Models (Temperature Sensors with ferrule)

Note:

1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.

2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

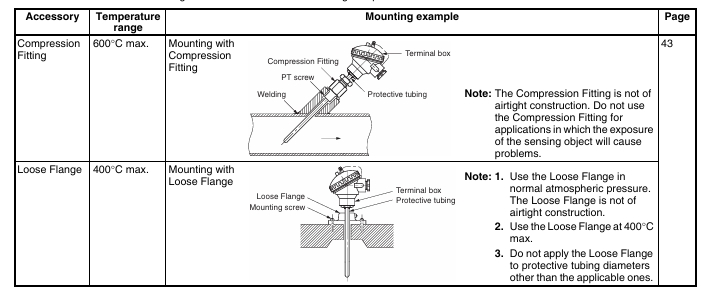

■Accessories

It is recommended that the following accessories be used for mounting Temperature Sensors.

■Model Number

Legend The type of resistance thermometer, protective tubing length, and lead length can be specified as shown below.
