E5AC-CX3ASM-800 E5AC-CX3ASM-804 控制温度

Large White PV Display That’s Easier to Read. Easy to Use, from Model Selection to Setup and Operation. Models with Push-In Plus Terminal Blocks Added to Lineup.

• The white PV display with a height of 15.2 mm improves visibility.

• High-speed sampling at 50 ms.

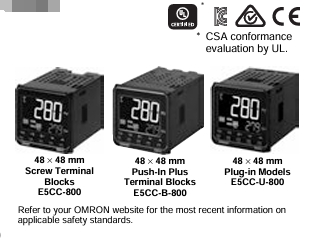

• Select from models with screw terminal blocks, models with Push-In Plus terminal blocks for reduced wiring work, and Plug-in Models that can be removed from the terminal block.

• Short body with depth of only 60 mm. (Screw Terminal Blocks)

• Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.

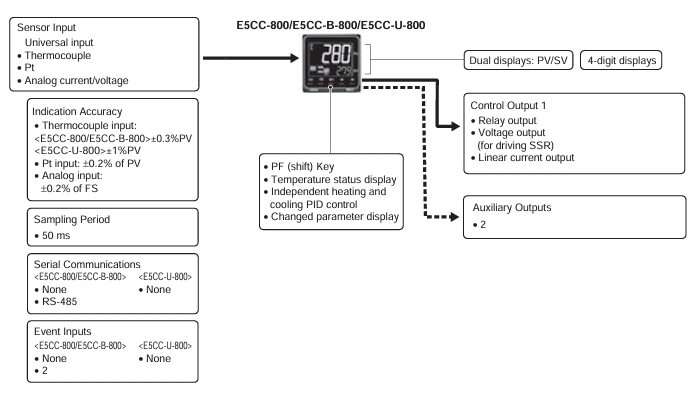

Main I/O Functions

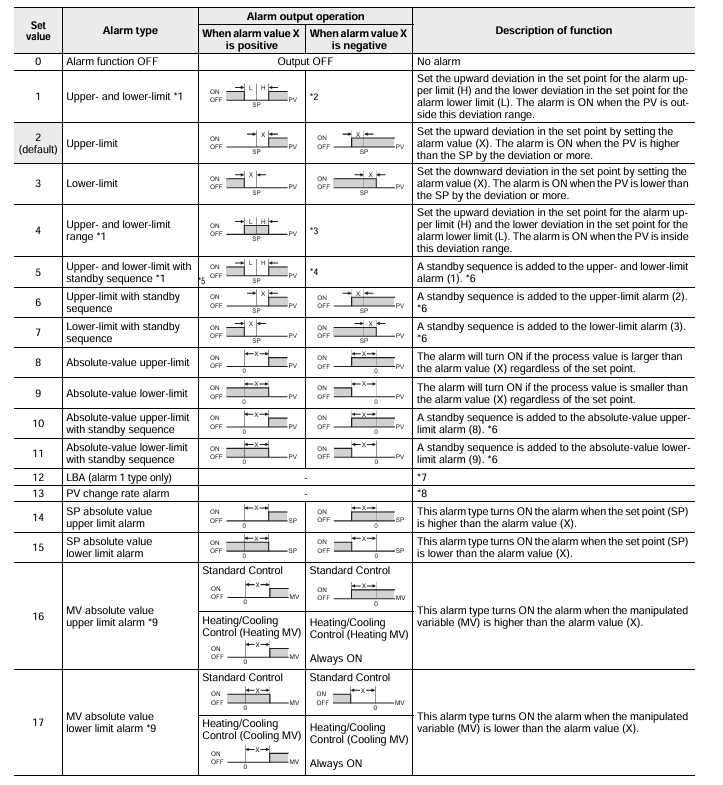

Alarm Outputs

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed. To use alarm 1, set the output assignment to alarm

Accessories (Order Separately)
