DEM-SOT223LDO

采用 SOT223 (DCQ) 封装与大多数正输出 LDO 兼容的 DEM-SOT223LDO

1 Background

The Texas Instruments DEM-SOT223LDO demonstration module (DEM) helps designers evaluate the operation and performance of Texas Instruments LDOs. This module is compatible with most positive output LDOs offered in the SOT223 (DCQ) package. This User’s Guide includes setup instructions, a schematic diagram, and a PCB layout drawing for the DEM.

2 Setup

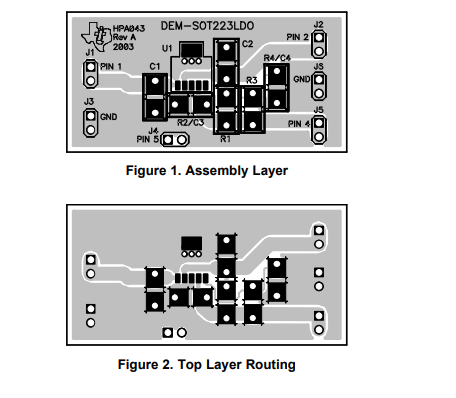

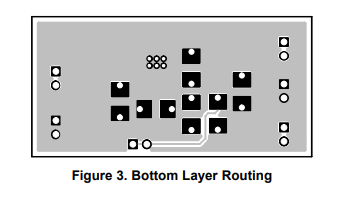

This DEM is specifically designed to be assembled with surface mount devices with footprints ranging from 603 to 1210. Additional holes have also been provided to accommodate leaded components. Refer to the product datasheet for specific guidelines when selecting components. The specific IC to be tested may be obtained through TI’s sample program. All components other than the PWB are user supplied. Figure 1 through Figure 3 show the board layout for the DEM-SOT223LDO printed circuit board.

3 Schematic

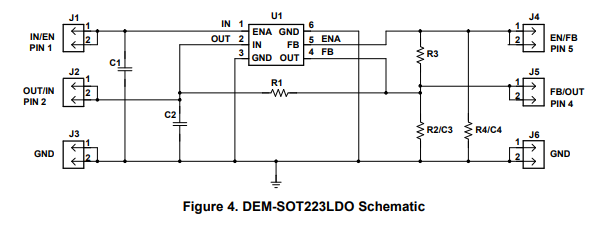

The schematic in Figure 4 illustrates the connections required to evaluate the two primary LDO pinouts in the SOT223 package. Depending on the LDO being evaluated, some components may be omitted.
