TPS7A6950EVM

TPS7A6950EVM - 汽车类、150mA、高压、超低静态电流 12uA、低压降稳压器

概述

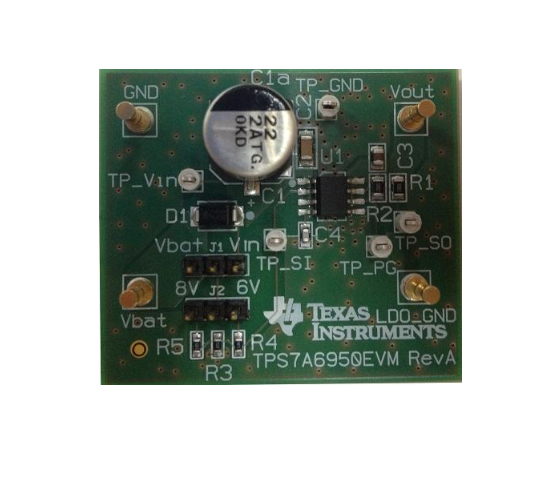

The TPS7A6950EVM allows the user to apply an input voltage of 4V to 40V to the input of the TPS7A6950QDRQ1 device under different loading conditions (0-150mA). Output, Input, PG and switching wave can be monitored on the EVM.

特性

· 4 -V to 40-V Wide Vin Input Voltage Range With up to 45-V Transient

· Output current 150mA

· Low Quiescent Current Iq:

o < 2uA when EN = low (shutdown mode)

o 12uA typical at Light Loads

· Low ESR ceramic output stability capacitor (2.2uF-100uF)

· 250mV dropout Voltage at 150mA(Typical, Vin=4V)

· Low Input Voltage Tracking

· Integrated Fault Protection

o Thermal Shutdown

o Short Circuit Protection

· Operating Ambient Temperature Range -40C to 125C
