TPS7A6333EVM

EVAL MODULE FOR TPS7A6333

1 Features

• AEC-Q100 qualified for automotive applications:– Temperature grade 1:–40°C to 125°C, TA– Junction Temperature:–40°C to 150°C, TJ

• Lowdropout voltage:– 300mVat IOUT = 150 mA

• 7-Vto 40-V wide input-voltage range with up to

45-V transients

• 300-mA maximum output current

• Ultralow quiescent current:– IQUIESCENT = 35 µA (typical) at light loads– ISLEEP < 2 µA when EN = low

• Fixed (3.3-V and 5-V) and adjustable (2.5-V to

7-V) output voltages

• Integrated watchdog with fault/flag

• Stable with low-ESR ceramic output capacitor

• Integrated power-on reset:– Programmable delay– Open-drain reset output

• Integrated fault protection:– Short-circuit and overcurrent protection– Thermal shutdown

• Lowinput-voltage tracking

• Thermally enhanced 14-pin HTSSOP-PWP

package and 10-pin VSON-DRK package

2 Applications

• Automotive head units

• Headlights

• DC/DCconverters

• Automotive center information displays

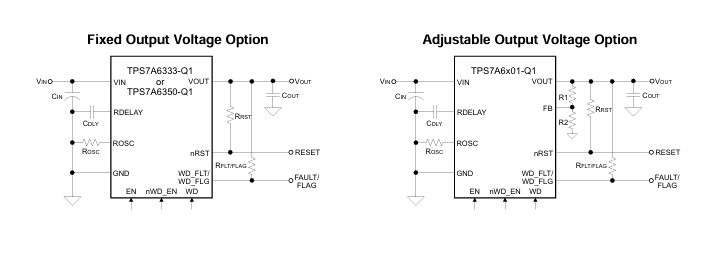

3 Description

The TPS7A63-Q1 and TPS7A6401-Q1 are a family of

low-dropout linear voltage regulators designed for low

power consumption and quiescent current less than

35 µA in light-load applications. These devices,

designed to achieve stable operation even with a low

ESR ceramic output capacitor, feature an integrated

programmable window watchdog and overcurrent

protection. Designers can program the output voltage

using external resistors. A low-voltage tracking

feature allows for a smaller input capacitor and can

possibly eliminate the need of using a boost

converter during cold-crank conditions. The power

on-reset delay is fixed (250 µs typical), or an external

capacitor can program the delay. Because of such

features, these devices are well-suited in power

supplies for various automotive applications.

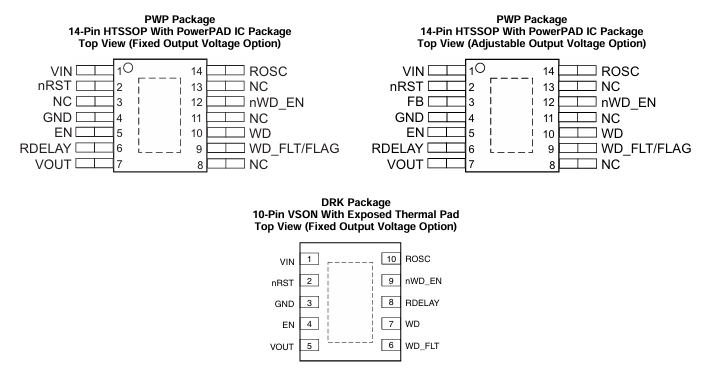

4.PinConfigurationandFunctions
