SN74HCS240QPWRQ1

Automotive Octal Inverting Line Drivers With Schmitt-Trigger Inputs and 3-State Outputs

1 Features

• AEC-Q100 qualified for automotive applications:

    – Device temperature grade 1: –40°C to +125°C,TA

    – Device HBM ESD Classification Level 2

    – Device CDM ESD Classifcation Level C6

• Available in wettable flank QFN (WRKS) package

• Wide operating voltage range: 2 V to 6 V

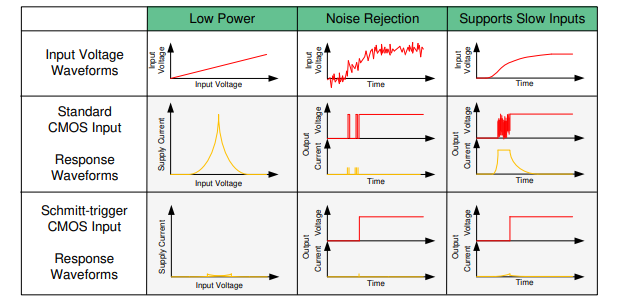

• Schmitt-trigger inputs allow for slow or noisy input signals

• Low power consumption

    – Typical ICC of 100 nA

    – Typical input leakage current of ±100 nA

• ±7.8-mA output drive at 6 V

2 Applications

• Enable or disable a digital signal

• Eliminate slow or noisy input signals

• Hold a signal furing controller reset

• Debounce a switch

3 Description

This device contains eight independent inverting line drivers with 3-state outputs and Schmitt-trigger inputs. Each channel performs the Boolean function Y = A in positive logic. The channels are grouped in sets of four, with one OE pin controlling each set. The outputs can be put into a hi-Z state by applying a high on the associated OE pin.
