TL072CDR

IC OPAMP JFET 2 CIRCUIT 8SOIC

1 Features

• High slew rate: 20 V/μs (TL07xH, typ)

• Low offset voltage: 1 mV (TL07xH, typ)

• Low offset voltage drift: 2 μV/°C

• Low power consumption: 940 μA/ch (TL07xH, typ)

• Wide common-mode and differential voltage ranges

– Common-mode input voltage range includes VCC+

• Low input bias and offset currents

• Low noise: Vn = 18 nV/√ Hz (typ) at f = 1 kHz

• Output short-circuit protection

• Low total harmonic distortion: 0.003% (typ)

• Wide supply voltage: ±2.25 V to ±20 V, 4.5 V to 40 V

2 Applications

• Solar energy: string and central inverter

• Motor drives: AC and servo drive control and power stage modules .

• Single phase online UPS

• Three phase UPS

• Pro audio mixers

• Battery test equipment

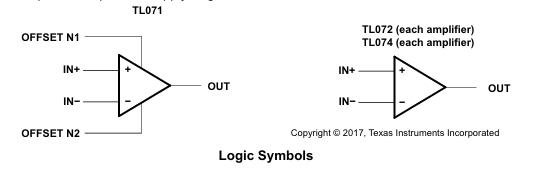

3 Description

The TL07xH (TL071H, TL072H, and TL074H) family of devices are the next-generation versions of the industry-standard TL07x (TL071, TL072, and TL074) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/μs), and common-mode input to the positive supply. High ESD(1.5 kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL07xH devices to be used in the most rugged and demanding applications.
