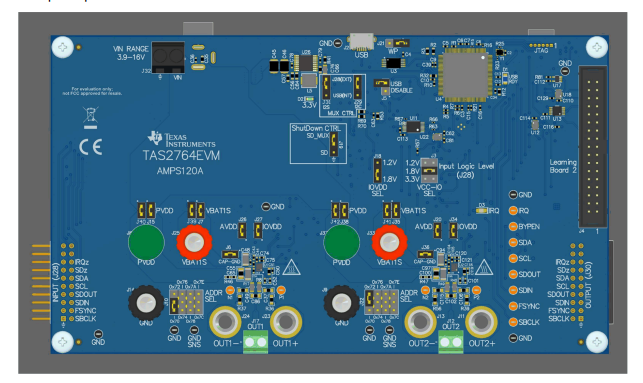

TAS2764EVM

DIGITAL INPUT MONO CLASS-D AUDIO

1 Description

The TAS2764 is a mono digital input Class-D audio amplifier optimized for efficiently driving high peak power into small loudspeakers. The Class-D amplifier is capable of delivering 13 W of continuous power into a 4 Ω load with less than 1 % THD+N at a supply voltage of 12 V.

Y-Brige architecture improves overall efficiency at low level of output power and in idle mode. Integrated speaker voltage and current sense provides for real time monitoring of loudspeaker behavior. A supply tracking peak voltage limiter optimizes amplifier headroom. Brownout prevention scheme with multiple thresholds allows reducing the gain in signal path when the supply drops.

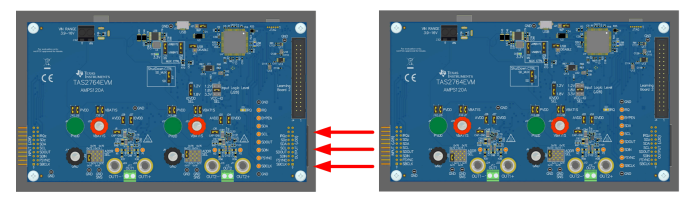

Up to eight devices can share a common bus via I2S/TDM and I2C interfaces. The device is available in a 30-ball, 0.4 mm pitch CSP for a compact PCB footprint.

TAS2764EVM supports evaluation and development with the TAS2764 device through the following interfaces:

• USB Interface

• Software control via PurePath™ Console 3 (PPC3) GUI, USB-HID

• USB-class audio device, compatible with Microsoft® Windows® 7+

• External 100-mil headers

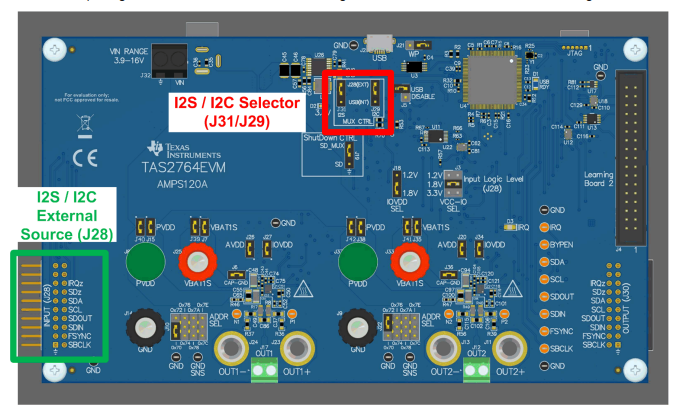

• PSIA – I2S/TDM interface

• I2C

• Hardware Shutdown Control

• Interrupt Output

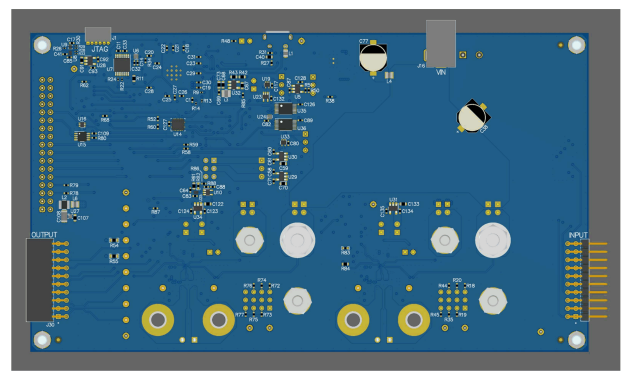

2 TAS2764EVM Sections Description

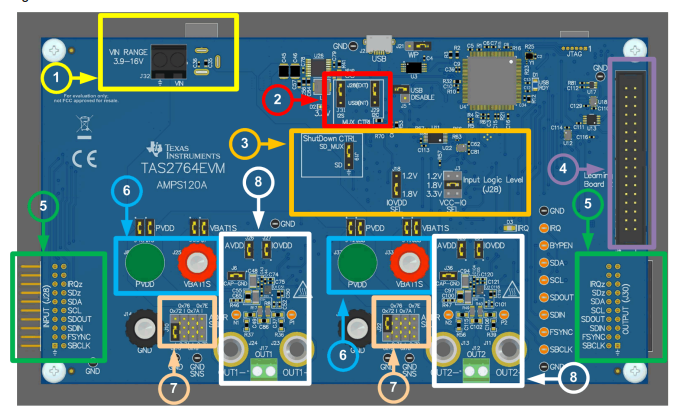

Figure TAS2764EVM Sections shows the different EVM sections whose are described in table below.

3. Software

The TAS2764EVM can be easily configured with PPC3 running the TAS2764EVM plug-in. To request access to the software first request a myTI.com account here.

After creating an account, navigate to the TAS2764EVM product page and follow the link in the information box to request access to the software.

For additional information and assist, please contact the TI experts through our E2E Audio Forum.
