LV2773IN

IC CMOS 2 CIRCUIT 14DIP

· High Slew Rate...10.5 V/µs Typ

· High-Gain Bandwidth...5.1 MHz Typ

· Supply Voltage Range 2.5 V to 5.5 V

· Rail-to-Rail Output

· 360 µV Input Offset Voltage

· Low Distortion Driving 600-Ω 0.005% THD+N

· 1 mA Supply Current (Per Channel)

· 17 nV/√Hz Input Noise Voltage

· pA Input Bias Current

· Characterized From TA = −55°C to 125°C

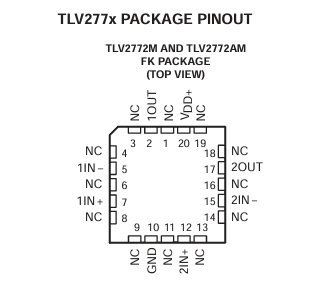

· Available in MSOP and SOT-23 Packages

· Micropower Shutdown Mode...IDD < 1 µA

· Available in Q-Temp Automotive High Reliability Automotive Applications Configuration Control / Print Support Qualification to Automotive Standards

description

The TLV277x CMOS operational amplifier family combines high slew rate and bandwidth, rail-to-rail output swing, high output drive, and excellent dc precision. The device provides 10.5 V/µs of slew rate and 5.1 MHz of bandwidth while only consuming 1 mA of supply current per channel. This ac performance is much higher than current competitive CMOS amplifiers. The rail-to-rail output swing and high output drive make these devices a good choice for driving the analog input or reference of analog-to-digital converters. These devices also have low distortion while driving a 600-Ω load for use in telecom systems.

These amplifiers have a 360-µV input offset voltage, a 17 nV/√Hz input noise voltage, and a 2-pA input bias current for measurement, medical, and industrial applications. The TLV277x family is also specified across an extended temperature range (−40°C to 125°C), making it useful for automotive systems, and the military temperature range (−55°C to 125°C), for military systems.

These devices operate from a 2.5-V to 5.5-V single supply voltage and are characterized at 2.7 V and 5 V. The single-supply operation and low power consumption make these devices a good solution for portable applications. The following table lists the packages available.
