SN74HCS266-Q1

Automotive Quadruple 2-Input XNOR gates with Open-Drain Outputs and Schmitt-Trigger Inputs

1 Features

• AEC-Q100 Qualified for automotive applications:

– Device temperature grade 1: –40°C to +125°C, TA

– Device HBM ESD Classification Level 2

– Device CDM ESD Classifcation Level C6

• Wide operating voltage range: 2 V to 6 V

• Schmitt-trigger inputs allow for slow or noisy input signals

• Low power consumption

– Typical ICC of 100 nA

– Typical input leakage current of ±100 nA

• ±7.8-mA output drive at 6 V

2 Applications

• Detect phase differences in input signals

• Create a selectable inverter / buffer

3 Description

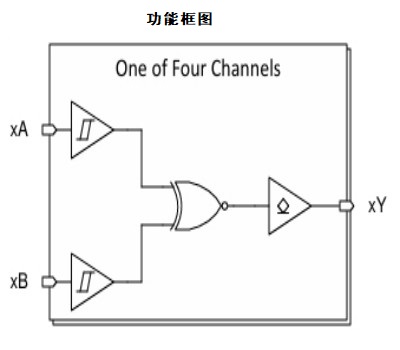

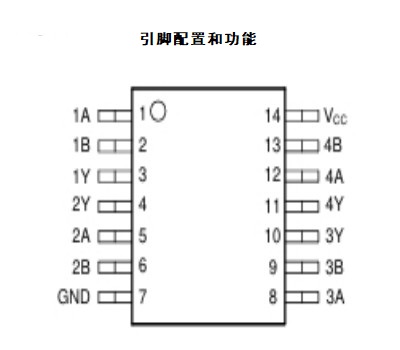

This device contains four independent 2-input XNOR gates with open-drain outputs and Schmitt-trigger inputs. Each gate performs the Boolean function Y = A B in positive logic.
