SN74LVC157ADRG4

IC MULTIPLEXER 4 X 2:1 16SOIC

1 Features

• Operate from 1.65V to 3.6V

• Specified from –40°C to 85°C,–40°C to 125°C, and –55°C to 125°C

• Inputs accept voltages to 5.5V

• Max tpd of 5.2ns at 3.3V

• Typical VOLP (output ground bounce) 2V at VCC = 3.3V, TA = 25°C

• Latch-up performance exceeds 250mA per JESD 17

• ESD protection exceeds JESD 22

– 2000V human-body model (A114-A)

– 1000V charged-device model (C101)

2 Description

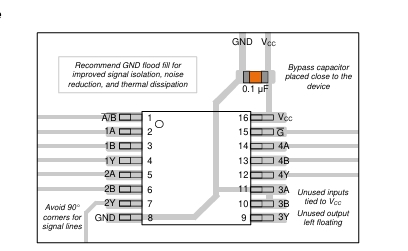

These quadruple 2-line to 1-line data selectors/ multiplexers are designed for 1.65V to 3.6V VCC operation.
