TPS72715YFFEVM-407

采用 YFF 封装的 TPS72715 LDO 线性稳压器评估模块

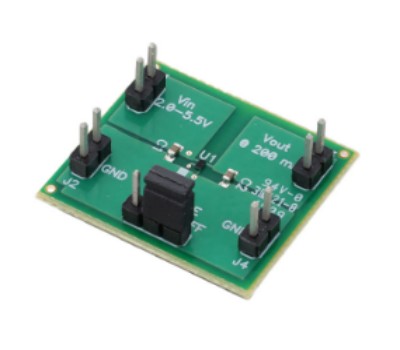

ThisUser’sGuidedescribes thecharacteristics,operation,anduseof theTPS727xxYFFEVM-407.This EVMdemonstrates theTexas InstrumentsTPS727xx, aLowDropOut (LDO) linear regulator inachip scale(WCSP-4)package that iscapableof 200mAof output current.Thisuser’sguide includessetup instructions,aschematicdiagram, thermalguidelines,abillofmaterials(BOM),andPCBlayoutdrawings fortheevaluationmodule.

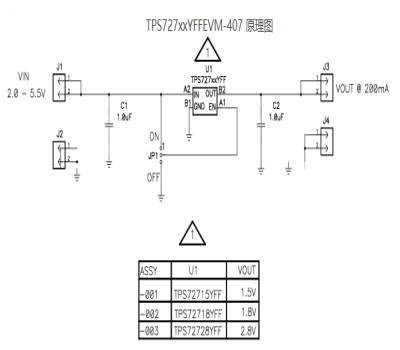

1 Introduction

TheTPS727xxYFFEVM-407evaluationmodule(EVM)helpsdesignersevaluatetheoperationand performanceof theTPS727xxLDOintheWCSP-4package.TheTPS727xxisa200mA,ultra-lowIq, fast transientresponse, linearregulator.

2 Setup

This chapter describes the jumpers and connectors on the EVM as well as how to properly connect, setup, and use the TPS727xxEVM.

2.1 Input / Output Connector Descriptions

2.1.1 J3– VOUT

This is the positive connection from the output. Connect this pin to the positive input of the load.

2.1.3 J2– GND

This is the return connection for the input power supply of the regulator.

2.1.4 J4– GND

This is the return connection for the output.

2.1.5 JP1– ENABLE

This jumper is used to enable or disable the output of the TPS727xx. Placing a shorting jumper between pins 1 and 2 ('ON' position) will enable the TPS727xx. Placing the shorting jumper between pins 2 and 3 ('OFF' position) will disable the TPS727xx.

3 Operation

This chapter provides information about the operation of the TPS727xxEVM.

3.1 Operation

Connect the positive input power supply to J1. Connect the input power return (ground) to J2. The TPS727xxEVM has an absolute maximum input voltage of 6.0V. The recommended maximum operating voltage is 5.5V. The actual highest input voltage may be less than 5.5V due to thermal conditions. See the Thermal Considerations section of this manual to determine if the highest input voltage.

Connect the desired load between J3 (positive lead) and J4 (negative or return lead). Configure jumper J6 for the desired output voltage.

4 Thermal Guidelines

This chapter provides guidelines for the thermal management of the TPS727xxYFFEVM-407 board.

4.1 Thermal Considerations

Thermal management is a key component of design of any power converter and is especially important when the power dissipation in the LDO is high. To better help you design the TPS727xx family into your application, the following formula should be used to approximate the maximum power dissipation at a particular ambient temperature:

TJ = TA + Pd × qJA

where TJ is the junction temperature, TA is the ambient temperature, Pd is the power dissipation in the IC and qJA is the thermal resistance from junction to ambient. All temperatures are in degrees Celsius.

The measured thermal resistance from junction to ambient for the TPS727xxEVM has a typically value of 224˚C/W. The recommended maximum operating junction temperature specified in the datasheet for the TPS727xx family is 125°C. With these two pieces of information, the maximum power dissipation can be found by using Equation 1.

Example Calculation:

For example, what is the maximum input voltage that can be applied to a TPS727xx with a 1.5V output voltage if the ambient temperature is 85C and the full 200mA of load current is required?

Given: TJ = 125°C, TA = 85°C, qJA = 224°C/W

Using Equation 1, we substitute in the given values above and find that the maximum power dissipation for the part is Pd =0.178W.

125°C = 85°C + Pd (224°C/W)

This means that the total power dissipation of the TPS727xx must be less than 0.178W. Now the input voltage can be calculated.

Pd = (Vin–Vout ) × Iout = (Vin– 1.5V) × 0.2A = 0.178W

So the maximum input voltage would need to be 2.39V or less in order to maintain a safe junction temperature.

Similar analysis can be performed to determine the maximum input voltage at room temperature (25°C) or 85°C to provide full output current while maintaining the junction temperature at or below 125°C. The answer will depend on the output voltage.

5 Board Layout

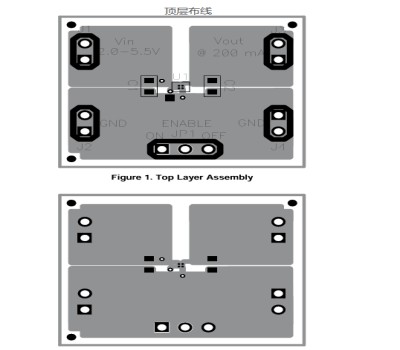

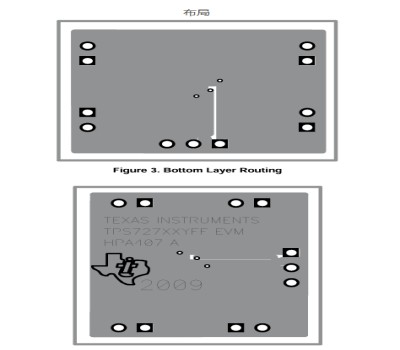

This chapter provides the TPS727xxYFFEVM-407 board layout and illustrations.
